Struggling to find the best racking system for your coldroom or warehouse? Choose a drive-in racking is a good choice. In this guide, we break down the true dimensions of drive-in racking and explain how to match it with the perfect pratical, so you can create a setup that’s safe, stylish, and space-efficient.
What Are the Actual Dimensions of Drive-in Racking System?
Height: The standard dimensions for drive-in pallet racks in Canada and the USA are 42 inches deep and 120 inches high, though standard rack uprights reaching up to 20 feet tall What Are Some Challenges to Employing a Warehouse Racking System are common. For cold storage applications, heights typically range from 10-20 feet to optimize energy efficiency and maintain temperature control.
Depth:
Drive-in systems accommodate 2-10 pallet positions deep, with the depth of each lane is the sum of the depth of all the pallets (including the load dimensions if the load overhangs) Standard pallet dimensions of 48" x 40" determine the basic lane depth, with additional clearance for safe forklift operation.
Width: The standard bay width for drive-in racking typically ranges from 8 to 12 feet, accommodating single or double-deep pallet storage configurations. The width must account for pallet overhang and structural support requirements.
Aisle Width
Aisle widths for drive-in systems typically require 10-12 feet minimum to allow forklifts safe entry and exit from the racking structure. Keep 4-6 inches of space between pallet rack levels for smooth forklift operation, with additional clearance needed in cold storage environments where forklift operation may be slower and more cautious.

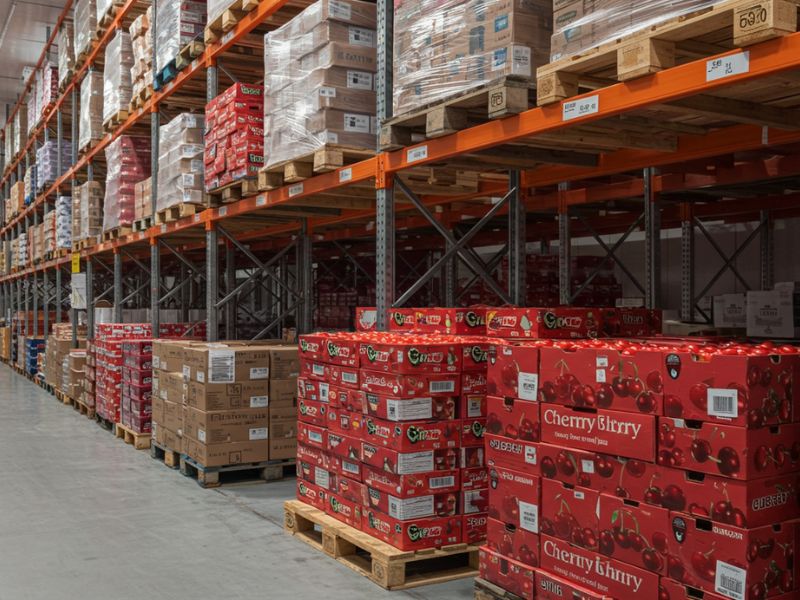

Low-Temperature Food & Beverage Warehouse for Cherry Storage
For a cherry storage facility operating at 32-34°F, specific dimensional considerations include:
Storage Level Height: For GP, Z, and FC rail systems, the storage level height equals the pallet height plus 8" to 10", while for C and DR rail systems, it equals the pallet height plus 10" to 12". Cherry pallets typically measure 48" high, requiring 56-60" level spacing.
Temperature Considerations: stored pallets can be loaded and unloaded in FIFO or LIFO mode in freezing chambers with temperatures as low -30ºC Diferencias entre Estanterías Drive in y Drive through, though cherry storage operates at milder refrigeration temperatures. Cold storage racking systems are special rack systems designed to distribute the heat evenly in the room and prevent heat loss Understanding Drive-In / Drive-Through Pallet Rack Systems |.
Material Specifications: Cold storage drive-in racks require specialized coatings and materials to prevent condensation and corrosion. The frame dimensions remain standard, but structural components need enhanced protection against moisture and temperature fluctuations common in cherry storage environments.
Layout Optimization: Cherry warehouses benefit from drive-in systems due to seasonal harvesting patterns and bulk storage requirements. The LIFO nature works well for short-term storage (cherries have 2-3 week shelf life), with lane depths of 4-6 pallets optimal for inventory rotation and accessibility.
Understanding Pallet Racking Size and dfferent of Drive-in rack
The key dimensional difference lies in the rail system design, which eliminates the need for individual beam levels at each pallet position.
Drive-in racks differ significantly from selective racking in their dimensional requirements, as they prioritize storage density over individual pallet accessibility.
Unlike selective racks where each pallet position is accessible from the aisle, drive-in systems create continuous storage lanes where pallets are stored 2-10 deep.
Why These Dimensions Matter
These dimensions matter because they directly impact how efficiently you can use your warehouse space, how safely you can store heavy loads, and how easily your staff can access inventory. Choosing the right size ensures you maximize storage capacity without compromising safety or accessibility.
How to Make Sure Drive-in Racking Fits in Your Space?
To ensure your drive-in racking fits, measure your available floor space and ceiling height, then match these to the rack’s depth, width, and height requirements. Also, consider forklift maneuverability and space for safe operation, as well as any building features like columns or sprinklers that could affect installation.
What Is the Inventory You Store?
The type of inventory you store determines if drive-in racking is suitable, as it works best for large volumes of similar items with low turnover or non-perishable goods. Products needing frequent rotation or varied SKUs may require a different racking system.
Drive-in racking is widely used in the food and beverage industry for storing bulk products, especially those that can be stacked deep and do not require frequent access.
Cold storage facilities benefit from drive-in racks because they maximize storage density in expensive, temperature-controlled environments, reducing energy costs and optimizing space.
Drive-in racks are ideal for long-term storage of items with low turnover, as the last-in, first-out (LIFO) system fits products that don’t need to be accessed regularly.
Measure Your Space Properly
Accurate measurement is crucial—measure the length, width, and height of your storage area, accounting for obstructions and required clearances. Also, factor in forklift aisle space and any safety regulations like fire codes or sprinkler requirements.
Warehouse Layout Considerations
Consider your warehouse’s overall layout, including the placement of doors, columns, and traffic flow, to ensure drive-in racks won’t block access or disrupt operations. The system’s depth and height must align with your warehouse’s design for optimal efficiency.
Will Your business Fit a drive-in rack?
Your business is a good fit for drive-in racking if you store large quantities of similar products, have limited space, and don’t require frequent access to every pallet. If you need high selectivity or deal with many SKUs, a different system may be better
Choosing the Right Racking System Supplier
Choosing the right supplier is crucial for ensuring your warehouse racking is safe, efficient, and compliant. A great supplier is a partner in your operational success. Foucs on the following
If you finding one-stop drive-in racking solution,contact HEDA SHELVES for expert help. Our racking system service for many distribution center like cherry warehouse, beef or package food warehouse, etc.
Common Problems Buyer Face When Searching for "drive-in rack"
How to Choose Suitable Racking System, Selective racking or Drive-in rack?
Selective racking offers better accessibility and is ideal for diverse products with frequent rotation, while drive-in racking maximizes storage density for large volumes of similar items. Your choice depends on your inventory type and how often you need to access each pallet.
Cost Condition: How Much is the Drive-in Racking, big brand or China Manufacturer
Drive-in racking costs vary by brand, material, and origin. Chinese Drive-in racking manufacturers often offer lower prices, but you should consider shipping, quality, and compatibility with local standards. Sometimes, the savings are less than expected after factoring in logistics and replacement costs.
Difficulty Installing or Mounting the Drive-in Racking
Installation can be complex, requiring level floors, precise measurements, and skilled labor to ensure safety and stability. Always use professional installers or follow detailed manufacturer instructions to avoid structural issues and ensure compliance with safety regulations.
FAQ
Can drive-in racks be combined with other racking systems?
Yes, drive-in systems can be combined with push-back or pallet flow racks to create a customized storage solution that balances density and selectivity.
Can drive-in racks be reconfigured?
Reconfiguration is possible but limited, mainly to adjusting lane widths or system depth. Major changes may require additional components or engineering.
What factors affect the price of a drive-in racking system?
Can drive-in racks be customized?
Yes. Drive-in racking can be tailored for different bay depths, pallet sizes, and warehouse layouts. Double-entry systems and custom configurations are available to further optimize space.
Conclusion
When looking for cost-efficiency warehouse racking system, it’s essential to choose a rich experience manufacturer for drive-in racking solution. Whether you're opting for a new warehouse with drive-in & drive-thru racking, understanding these dimensions will ensure a high efficiency warehouse storage solution and help your business growth.
By considering compatibility, Contact HEDA SHELVES, a leading warehouse racking system supplier since 2001. Our Drive-in racking suit for many warehouse like fruit warehouse, cold storage, and building material storage. Get Free Quota Now.
